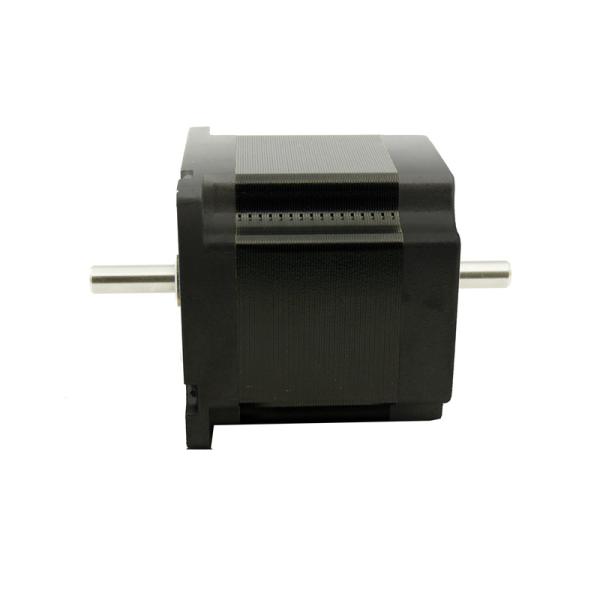

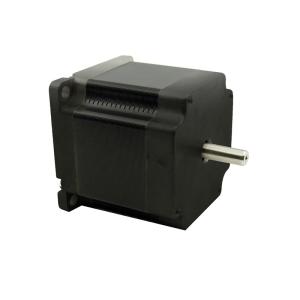

    4wires double shaft NEMA23 stepper motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A

    Ask Lasest Price
    Brand Name : KIMBROUGH
    Model Number : 57HS56B43006/57HS56B43008
    Certification : CE
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 2000pcs per week
    Delivery Time : in stock
    • Product Details
    • Company Profile

    4wires double shaft NEMA23 stepper motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A

    4wires double shaft NEMA23 stepper motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A


    General specifications


    Step Angle Accuracy: 5%

    Temperature rise: 80°c Max

    Ambient temperature: -10°c~+50°c

    Insulation resistance: 100MΩ Min 500VDC

    Dielectric strength: 500V AC 1minute

    Shaft Radial Play: 0.02mm Max(450g-load)

    Shaft Axial Play: 0.08mm Max(450g-load)


    ■ Specifications
    ModelStep Angle (°)Length L(mm)Holding Torque (N.m)Current (A/Phase)Resistance (Ω)Inductance (mH)Rotor inertia (g.cm2)Weight (kg)Shaft diameter (mm)Axis stretch (mm)Matched driver
    57HS41B430061.8410.63.00.71.41200.456.35Leveling block 0.5x20JB542M
    57HS51B43006511.03.00.741.22750.656.35Leveling block 0.5x20
    57HS56B43006561.33.00.752.43000.76.35Leveling block 0.5x20
    57HS56B43008561.33.00.752.43000.78.0Leveling block 0.5x20
    57HS76B44006762.34.00.52.04801.06.35Leveling block 0.5x20
    57HS76B44008762.34.00.52.04801.08.0Leveling block 0.5x20
    57HS85B44008852.64.00.83.25201.28.0Leveling block 0.5x20
    57HS115B440081153.54.00.52.36001.78.0Leveling block 0.5x20

    ModelForward shaftRear shaft
    Shaft diameter(mm)Axis stretch(mm)Shaft diameter(mm)Axis stretch(mm)
    57HS56B430066.35Leveling block 0.5x206.35Leveling block 0.5x19
    57HS56B430088.0Leveling block 0.5x208.0Leveling block 1x19
    57HS76B440066.35Leveling block 0.5x206.35Leveling block 0.5x19
    57HS76B440088.0Leveling block 0.5x208.0Leveling block 1x19

    ■Dimension Unit:mm



    ■Frequency-torque characteristics



    ■Connections
